You can overlay and compare your 3D model to reality from any scene, at the click of a button
This is a beta feature - we would love to hear your feedback on how it works and the ways you have been using it. Please reach out to your Customer Success rep or email help@oculo.ai with feedback
Overview video
Accessing the feature

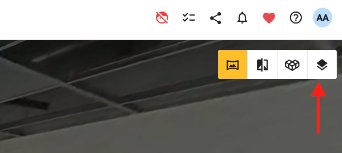

- Click the BIM Overlay button from any 360 scene

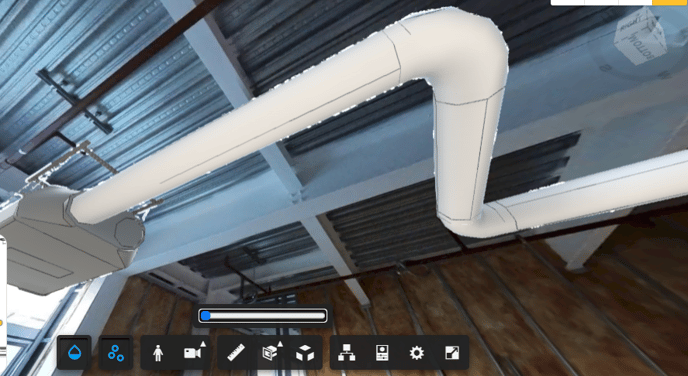

Fading the 3D model

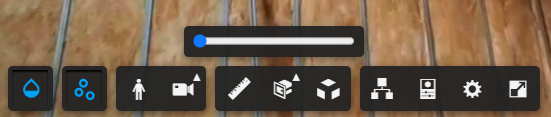

- Fading slider is enabled/disabled with the leftmost 'droplet' button
- On the slider left = full BIM model, right = full 360 frame
Hiding elements

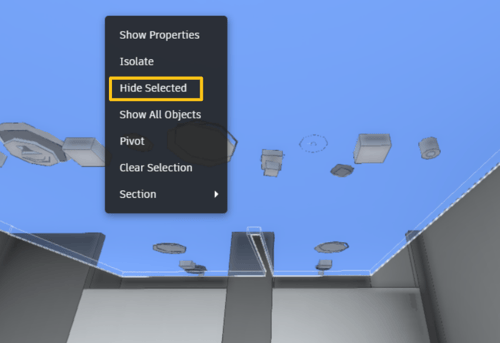

- You are able to left click to select any component within the model (it will be highlighted blue), then a right click will give you the option to Hide Selected components.
- Right click anywhere and select Show All Objects to return any hidden objects. Perfect for hiding walls and ceilings that are in the way of a pipework comparison.

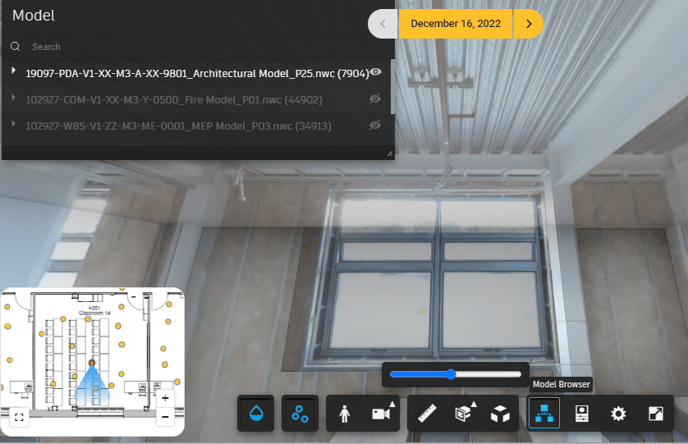

- You can also hide full layers from the BIM hierarchy using the Model Browser, then deselecting layers with the eye symbol
Isolating elements

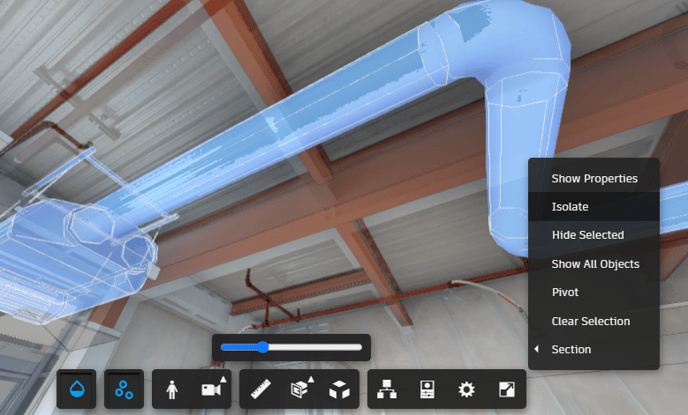

- Left click to select one, or hold SHIFT and left click to select multiple elements (they will be highlighted in blue), then a right click will give you the option to Isolate components
- Once elements are isolated, you can move the slider to the left to see an 'AR' view with elements projected into reality
Navigation
- Rotate within a scene with left click and drag of the mouse
- Zoom in or out using mouse scroller
- You can jump to any other scene within the BIM Overlay view by using the Minimap

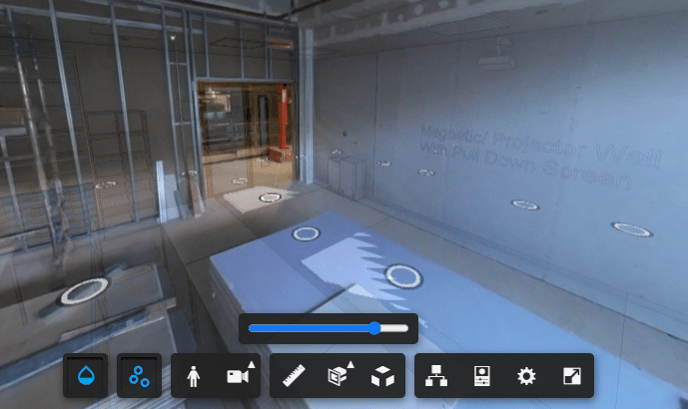

- You can also navigate more locally by selecting one of the projected circles on the floor, where each represents another 360 scene within a 10m radius

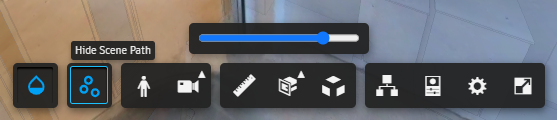

- You can disable this path if needed by toggling the Hide Scene Path button
Exiting the feature
- You can exit the feature at any point back to 360 view, side by side, or BIM comparison view using the toggle in the top right corner
As above - please get in touch with feedback and requests on this feature!
Last updated: 14/08/2024
