Follow these steps to upload your floor plans and BIM model directly onto Oculo.
Floor plan upload
STEPS SUMMARY:
1. From the Oculo main dashboard click the three dots on the top right of the screen
2. Click "Upload"
3. Click "Upload new floor plan"
4. Drag & drop or browse for the files that need to be uploaded
5. Click "Upload # files"
We are looking for PDFs of the following:
- Site plan
- GA plans per level (including roof and basements)
- Scaffold elevation drawings if scaffolding will be scanned
Note: If you have separate files per level, you can upload them all at the same time
BIM Model upload
STEPS SUMMARY:

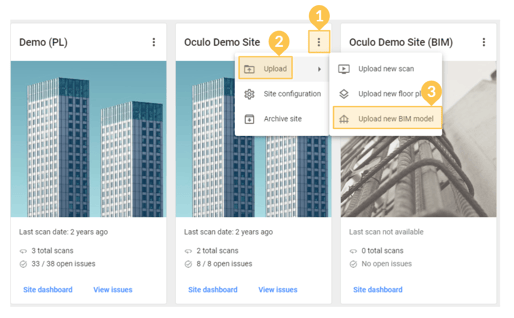

1. From the Oculo main dashboard click the three dots on the top right of the screen
2. Click "Upload"
3. Click "Upload new BIM Model"

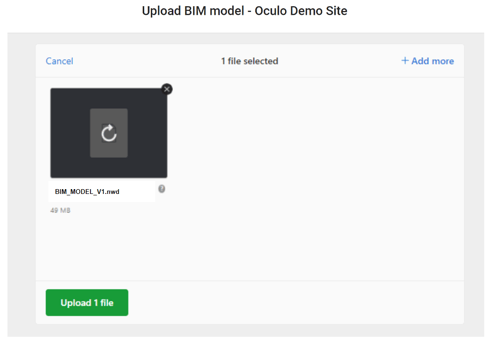

4. Drag & drop or browse for the files that need to be uploaded
5. Click "Upload # files"
Please ensure you are uploading an ideally federated model. If a federated model is not available, make sure all important model parts are uploaded individually. NWD is the preferred format, but all formats are supported.
If you are uploading more than one model, please ensure they all are of the same format.
You can follow the same process when adding updated or additional floor plans and BIM models further through the project's cycle.
